5 mm Electrothermic Actuator

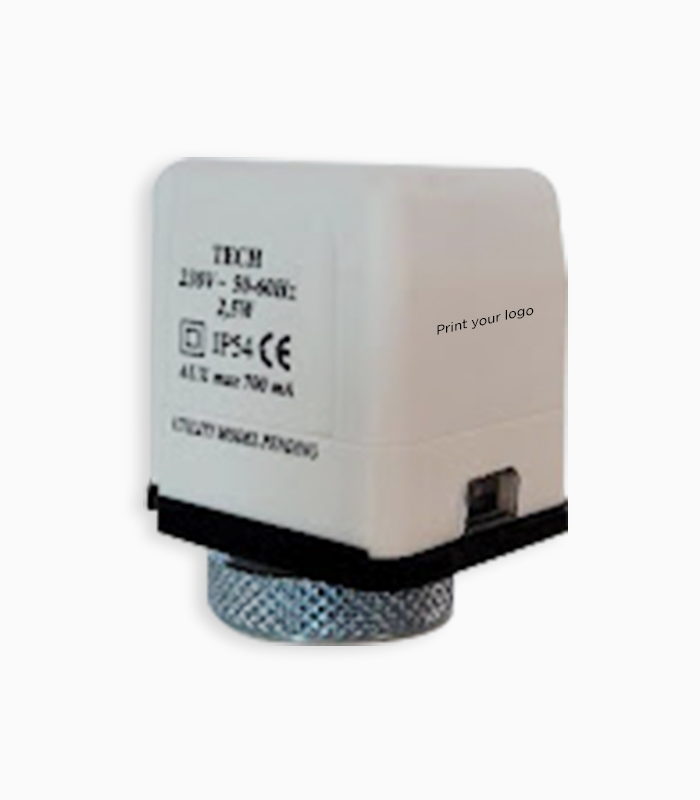

Electrothermic nickel plated actuator

Compact electrothermal actuator, with nickel-plated ring nut, on/off action compatible with thermostatable radiator valves, fan-coil valves and collectors.

Available variants:

  • Fluid passage version TEAP (NA)
  • TECH flow interception version (NC)
  • For both variants you can choose the basic version or the AUX version.
  • The basic version includes 2 wires
  • The AUX version includes 4 wires with micro
  • The power supply voltage is 24V,230V, (on request 110V)

""
1

Ask for information
keyboard_arrow_leftPrevious
Nextkeyboard_arrow_right
FormCraft - WordPress form builder
Category:
Main features:
  • stroke 4,5mm
  • thrust 110N ( NC version ) 200N ( NA version )
  • linear motion
  • 2W consumption
  • ferrule connection M30x1,5mm nickel-plated
  • protection degree IP54
  • casing material: self-extinguishing V0
  • auxiliary contact : Max 700 mA - 250 V ~ (a. c.)
  • double insulation construction
  • mechanical position indicator
  • model utility-Patent inherent the union between base and cover.
Technical data:
Code Description Protection Packaging
TECH2230P electrothermal actuator NC 2 wires 230V ip54 50
TECHAUX230P electrothermal actuator NC 4 wires 230V ip54 50
TECH224P electrothermal actuator NC 2 wires 24V ip54 50
TECHAUX24P electrothermal actuator NA 2 wires 230V ip54 50
TEAPAUX230P electrothermal actuator NA 4 wires 230V ip54 50
TEAP224P electrothermal actuator NA 2 wires 24V ip54 50
TEAPAUX24P electrothermal actuator NA 4 wires 24V ip54 50
